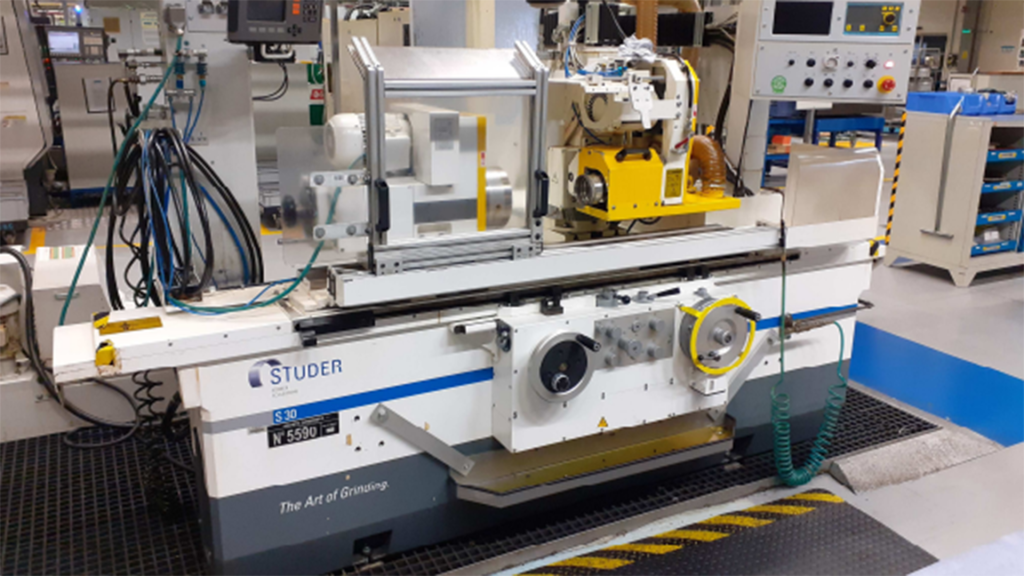

品牌：STUDER 型号：s30-1 类型：内外圆磨床
 |
|
 |
 |
 |
|
 |
|
 |
|
 |
|
技术参数
| Distance between centers | 1000 mm |
| Centers height | 175 mm |
| Grinding wheel holder headstock orientation | 0 – 180 ° |
| Grinding wheel holder headstock indexing precision | 5 ° |
| Grinding wheel dimensions | 500 x 63 x 203 mm |
| Cutting speed | 35 m/sec |
| Headstock power | 7.5 kW |
| Maximum workpiece weight | 130 kg |
| Table orientation | 10 ° |
| headstock rotation speed | 35-520 rpm |
| EQUIPMENT | |
| Sensitron 6 | |
| Internal grinding spindle | 1 |

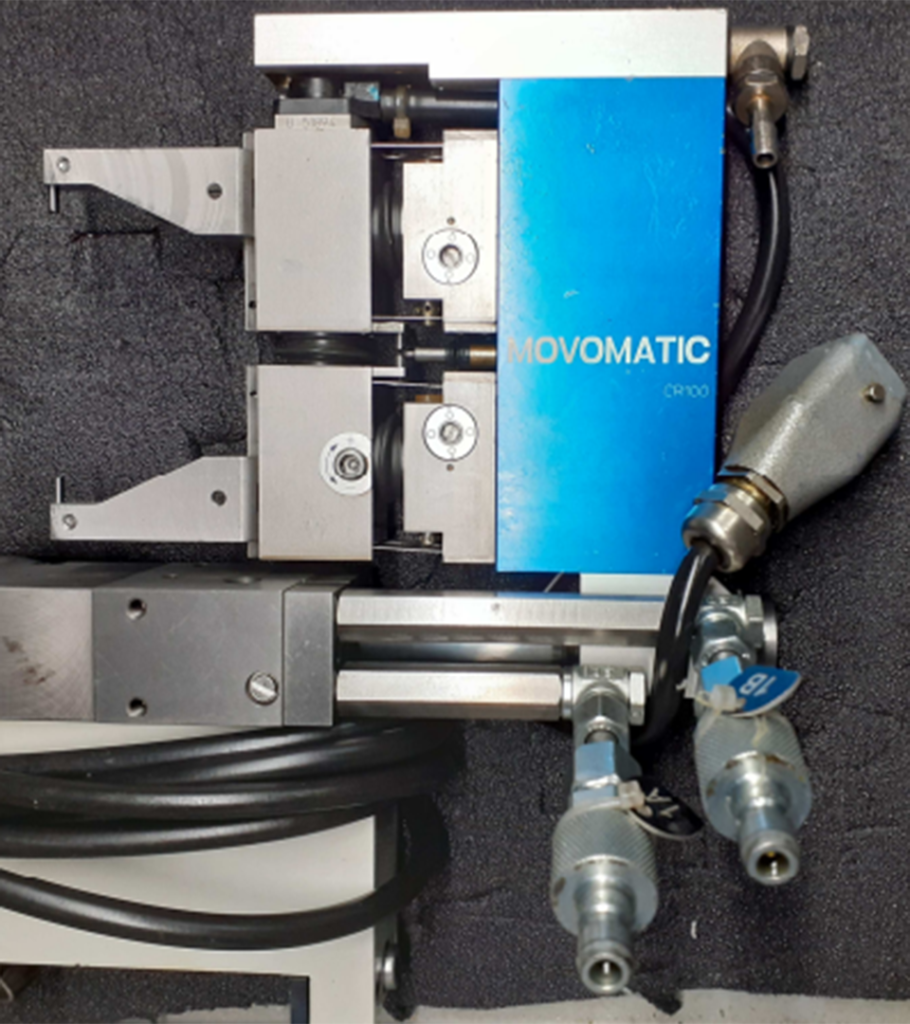

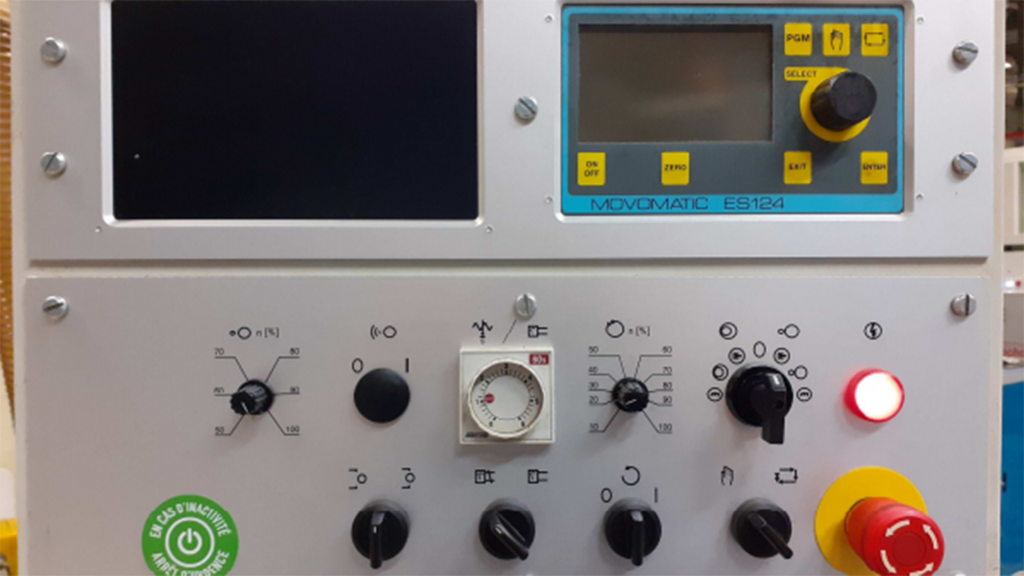

| Measuring head MOVOMATIC ES124 for the diameter | 1 |
| Tailstock | 1 |
| Diamond grinding device for external wheel | 1 |
| Radius grinding devic | 1 |
| Display 2 axes HEIDENHAIN | 1 |

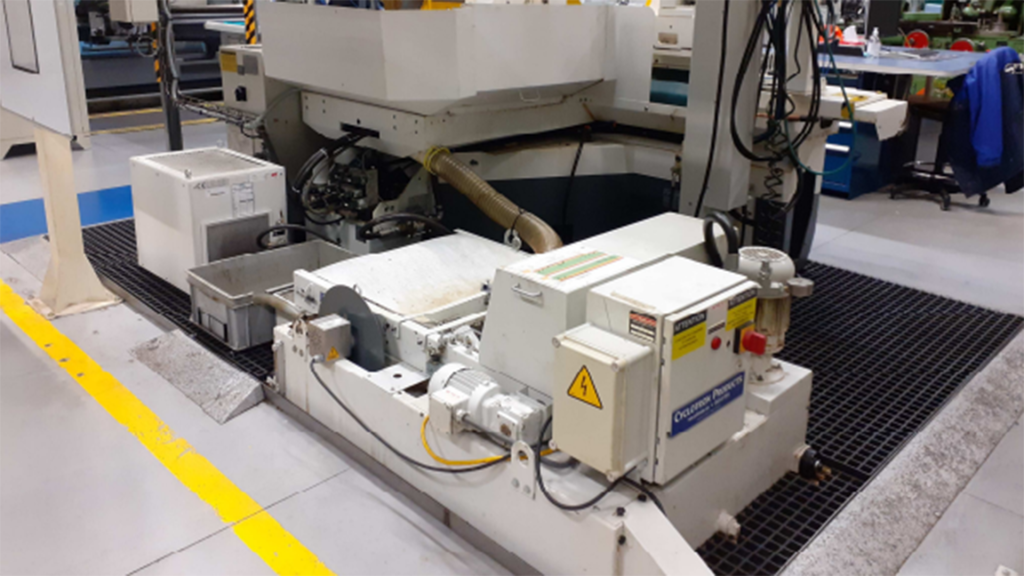

| Lubricating tank with paper filtration | 1 |
| Set of grinding wheel holders and grinding wheels | 1 |
